ID Resolver

The ID Resolver lets twinsphere applications reach a digital twin from its ID alone, without knowing which organization or tenant hosts it. One of key use cases is public access through the twinsphere Viewer, where scanning a QR code is enough to show a twin's public data.

You register resolution rules for your organization. Each rule claims an ID prefix and names the tenant endpoints that serve the twins whose IDs start with it.

The resolver works across the whole twinsphere landscape: an ID is resolved against the rules of every organization, not just your own. This is why a prefix belongs to exactly one organization. The first organization to register it owns it.

The following terms are used throughout this page:

Term	Meaning
Resolution rule	Maps an ID prefix to the tenant endpoints of your organization that host the matching twins
Prefix	The beginning of an ID that a rule matches, for example https://example.com/assets/
Rule type	Which part of the AAS resolution chain the rule points to, see Rule types
AAS ID	The id of an asset administration shell
Asset ID	The globalAssetId or a specific asset id of the asset a shell describes

Prerequisites

• The organization-owner role in the organization. Only organization owners can view, change and check resolution rules. See Roles.
• At least one tenant in the organization.
• Named discovery or registry instances are optional: A rule can point to a named discovery or registry instance of a tenant. See Discovery and Shell Registry for how to get one.

How resolution works

According to the AAS specifications, a client finds the data of an asset in up to three steps:

Asset ID → Discovery → AAS IDs → Registry → Shell Descriptors → Repository → Digital Twin

Clients start from one of two kinds of ID:

• Asset ID, for example read from a QR code on the device. The client first asks a discovery for the AAS IDs of the asset.
• AAS ID, when the client already knows the shell. The client asks a registry for the shell descriptor, or goes to the repository directly.

The chain itself stays as the AAS specifications define it. What resolver improves is where a client finds these services (discovery, registry, repository) for a given ID. The clients then simply follow the chain through the standard AAS APIs.

Rule types

The type of a rule decides which services it points to, and so where the client starts.

Type	For	Chain the client walks	Resolves to
repository	AAS IDs	AAS ID → Repository	Repository URL
registry	AAS IDs	AAS ID → Registry → Repository	Registry URL
discovery-to-repository	Asset IDs	Asset ID → Discovery → AAS IDs → Repository	Discovery URL and repository URL
discovery-to-registry	Asset IDs	Asset ID → Discovery → AAS IDs → Registry → Repository	Discovery URL and registry URL

Use repository when the shells live in the tenant's own repository, which is the most common setup. Use registry when you keep shell descriptors in a named registry instance, for example because the shells are spread over several repositories. Use the discovery-to-* types when clients start from an asset ID.

Prefix requirements

• At least 10 characters. A shorter prefix, like the bare scheme https://, would match nearly every ID.
• No overlap with another organization. Once an organization has registered a prefix, no other organization can register the same prefix, a longer prefix that starts with it, or a shorter prefix it starts with. The request is refused with 409 Conflict. Choose prefixes under a domain or namespace you control, for example https://example.com/ or urn:example:.

Which rule wins

An ID matches every rule whose prefix it starts with. When several rules match, one of them wins:

1. The longest prefix wins. A rule for https://example.com/assets/pumps/ beats one for https://example.com/assets/.
2. On equal length, an asset ID rule wins. A discovery-to-* rule beats a repository or registry rule with the same prefix.
3. Any remaining tie is decided by the rule's id, so the same ID always resolves the same way.

Prefixes are compared exactly, character by character, and are case-sensitive: https://example.com/Assets/ and https://example.com/assets/ are different prefixes. Use the prefix exactly as your IDs are written.

Managing rules in the Manage UI

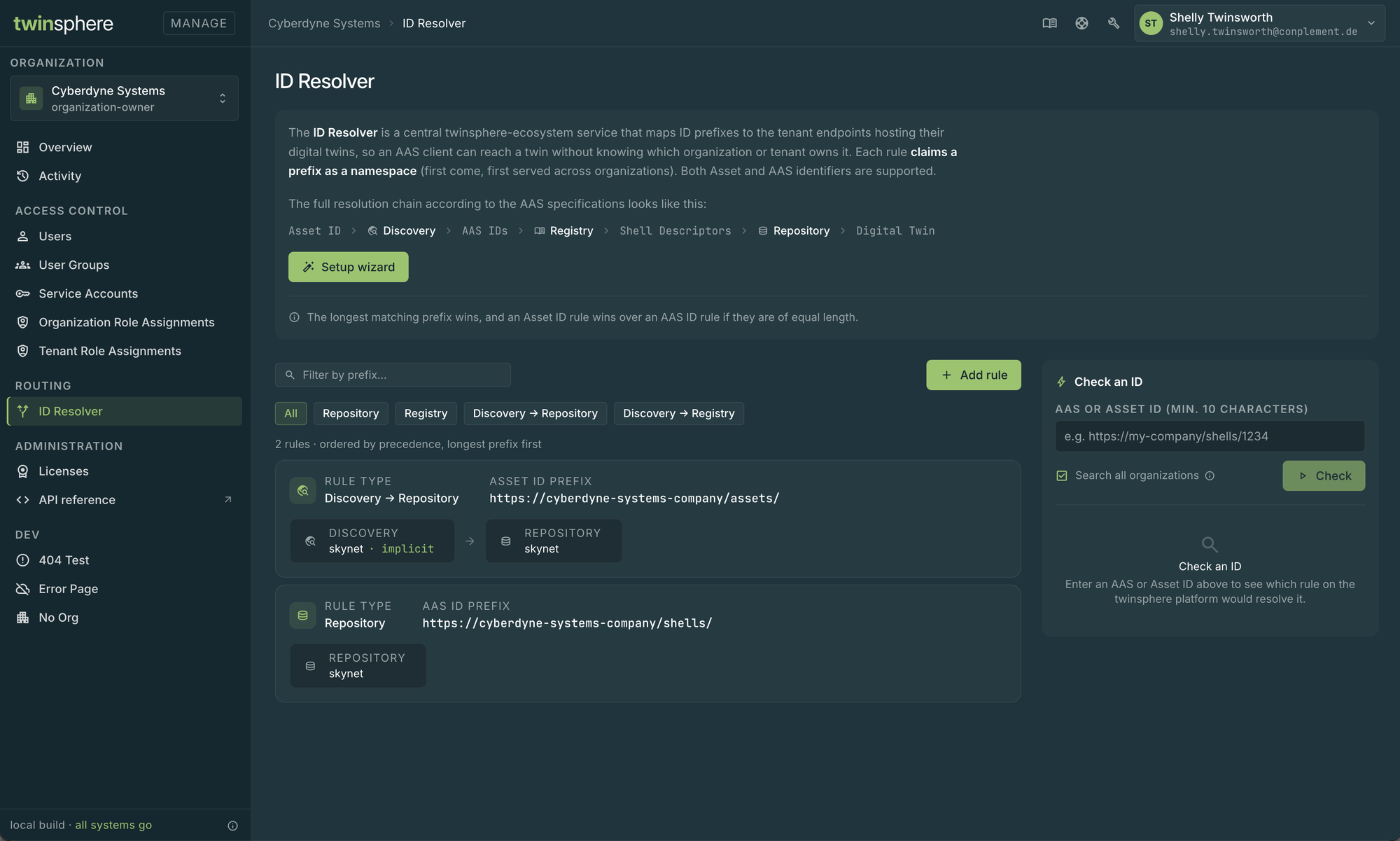

Open https://manage.twinsphere.io ⧉ and select ID Resolver in the sidebar under Routing.

The page lists the rules of your organization, longest prefix first, the way they take precedence. Filter them by prefix with the search field, or by type with the chips above the list. Select a rule to edit it, or delete it with its delete button.

Creating, changing and deleting rules is recorded under Activity.

Set up a rule with the wizard

The Setup wizard button in the introduction at the top of the page creates a rule for the two most common setups, in which a single tenant serves everything. It takes two steps.

1 · Mapping. Choose what you want to map:

Choice	Use it when	Creates
Map Asset IDs to a tenant	Clients start from an asset ID, for example a QR code on the device scanned in the Viewer	A discovery-to-repository rule. Asset IDs are looked up in the tenant's implicit discovery, and the AAS IDs found there resolve to the same tenant's repository
Map AAS IDs to a tenant	Clients already know the AAS ID	A repository rule. AAS IDs resolve directly to the tenant's repository
Custom	You need a registry, a named instance, or different tenants for discovery and repository	Nothing yet. Open rule editor takes you to the full rule editor

2 · Prefix & tenant. Enter the asset ID or AAS ID prefix and select the tenant. The Result box below the fields shows the rule type and the resolution chain the rule will create, so that you can check it before you select Create rule.

Add a rule in the rule editor

Add rule above the list opens the rule editor, which supports every rule type.

1. Choose the Type. The editor shows only the sections that this type needs.
2. Enter the prefix. The field is labelled AAS ID prefix or Asset ID prefix, depending on the kind of ID the type matches.
3. Select the tenant of each section. For a discovery, choose Implicit discovery or an Explicit named instance and enter its name. For a registry, enter the name of the registry instance.
4. Select Create rule.

The same editor opens when you edit an existing rule. If the prefix conflicts with another rule, the editor tells you so and keeps your input.

Check an ID

The Check an ID panel next to the rules shows which rules match an ID, and which of them wins. Enter an AAS ID or an asset ID of at least 10 characters and select Check.

• With Search all organizations selected (the default), the check runs against the rules of every organization, the same way the resolver does. Rules of other organizations are marked External org; which organization owns them is not shown.
• Without it, the check uses your organization's rules only.

The first match is the winner: the rule the ID resolves through. Use the check before you create a rule, to see whether the prefix is already claimed, and afterwards, to make sure your IDs resolve to the rule you expect.

Managing rules through the Management API

All operations of the Manage UI are also available in the Management API. For the full reference of every endpoint, with all request and response fields, see the OpenAPI specification ⧉.

Operation	Method	Endpoint
List rules	GET	/api/v1/organizations/{organizationId}/resolver/rules
Get a rule	GET	/api/v1/organizations/{organizationId}/resolver/rules/{id}
Create a rule	POST	/api/v1/organizations/{organizationId}/resolver/rules
Update a rule	PUT	/api/v1/organizations/{organizationId}/resolver/rules/{id}
Delete a rule	DELETE	/api/v1/organizations/{organizationId}/resolver/rules/{id}
Check an ID	GET	/api/v1/organizations/{organizationId}/resolver/check?id={id}&global={global}

Create a rule

POST https://manage.twinsphere.io/api/v1/organizations/{organizationId}/resolver/rules

Example Request

POST /api/v1/organizations/{organizationId}/resolver/rules
Authorization: Bearer {token}
Content-Type: application/json

{
  "prefix": "https://example.com/assets/",
  "type": "discovery-to-registry",
  "discovery": { "tenantId": "{tenant-id}", "implicit": true },
  "registry": { "tenantId": "{tenant-id}", "instance": "partners" }
}

Check an ID

GET https://manage.twinsphere.io/api/v1/organizations/{organizationId}/resolver/check?id={id}&global=true

id is the AAS ID or asset ID to check, as plain text. Unlike in the AAS APIs, it is not base64url-encoded; only URL-encode it as a query value. global defaults to false, which checks your organization's rules only. Set it to true to check against the rules of every organization.

Example Request

Checking the asset ID https://example.com/assets/pumps/p-4711 against the rules of every organization:

GET /api/v1/organizations/{organizationId}/resolver/check?id=https%3A%2F%2Fexample.com%2Fassets%2Fpumps%2Fp-4711&global=true
Authorization: Bearer {token}

Example Response (200 OK)

[
  {
    "prefix": "https://example.com/assets/pumps/",
    "type": "discovery-to-repository",
    "externalOrganization": false
  },
  {
    "prefix": "https://example.com/assets/",
    "type": "discovery-to-registry",
    "externalOrganization": false
  }
]

The matches are ordered winner first. An empty list means that no rule matches the ID. externalOrganization is true for a rule of another organization.
